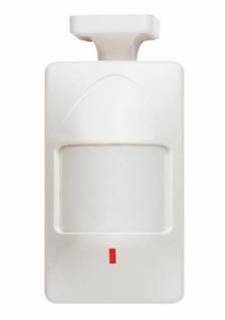

Home > Products > Burglar Alarm > PIR Detector > PR-410

* Microprocessor Design
* Real Temperature Compensation
* Anti white Light
* Low Power Consumption
* High RFI Immunity to Reduce False Alarm (22V/m at 10Mhz to 1GHz)
* Professional Optical Lenses
* Resist Fluorescent Interference
* Form-C Relay
* Smart and Elegant Design is Ideal Selection for Residential Installations
* Detect range: 12 meters
* 33Kg pet immunity model PT-410 is optional

Rated Voltage
Operated Voltage
Rated Current
12mA at 12VDC
Contacts of Alarm
NC, 12VDC, 100mA max
 Installation Height
Detecting Distance
 10m (under 26 in indoor room)
 Detecting Angle
Response time to Alarm
Time to Warm-up
2 minutes
Pet immunity
PR-410 NO/PT-410 33Kg
RFI characteristic
22V/m at 10Mhz to 1Ghz
Operating Temperature
 -5ºC to 50ºC
Size (L*W*H)
 107 x 58 x 39mm
