Home > Products > Burglar Alarm > PIR Detector > PR-210

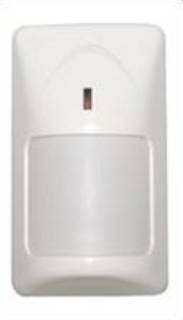

PR-210
* Microprocessor Design
* Real Temperature Compensation
* Anti white Light
* Low Power Consumption
* High RFI Immunity to Reduce False Alarm (22V/m at 10Mhz to 1GHz)
* Professional Optical Lenses
* Resist Fluorescent Interference
* Form-C Relay
* Smart and Elegant Design is Ideal Selection for Residential Installations
* Detect range: 10 meters
* 20Kg Pet immunity model PT-210 is optional
 Specifications



Item
PR-210/PT-210
Rated Voltage
12VDC
Operated Voltage
9-16VDC
Rated Current
12mA at 12VDC
Contacts of Alarm
NC, 12VDC, 100mA max
 Installation Height
2.4m
Detecting Distance
 10m (under 26 in indoor room)
 Detecting Angle
110°
Response time to Alarm
2.2s
Time to Warm-up
2 minutes
Pet immunity
PR210 NO/PT210 20KG
RFI characteristic
22V/m at 10Mhz to 1Ghz
Operating Temperature
 -5ºC to 50ºC
Size (L*W*H)
 89 x 52 x 39mm
