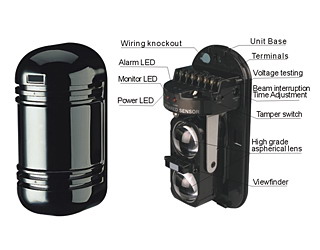

ABT Series |
 |
*Dual Photoelectric Detector, difference distance as option
*Twin synchronized pulsed beams designed for greater stability
*Design Durability
*Frost and dew protection
*High grade as pherical lens
*Perfect beam blocking stability
*Adjustable beam interruption period
*Quick optical and voltage alignment to speed up positioning
*A.G.C (Automatic Gain Control) Circuit |
| Specifications |
|
Items Models |
ABT-30 |
ABT-60 |
ABT-80 |
ABT-100 |
|
Detection Method |
Infrared photoelectric |
|
Range |
Outdoor |
30m |
60m |
80m |
100m |
|
Indoor |
90m |
180m |
240m |
300m |
|
Beam Characteristics |
Pulsed infrared dual beams |
|
Interruption period |
50~700msec(selectable) |
|
Power input |
DC12~24V/AC11~18V |
|
Current consumption |
40mA max |
55mA max |
65mA max |
65mA max |
|
Alarm period |
2sec(±1)nominal |
|
Alarm output |
Form C relay(AC/DC30V 0.5A max) |
|
Tamper switch |
N.C. Opens when cover is removed |
|
Operating temperature |
-25℃ to +55℃ |
|
Environment humidity |
95%max |
|

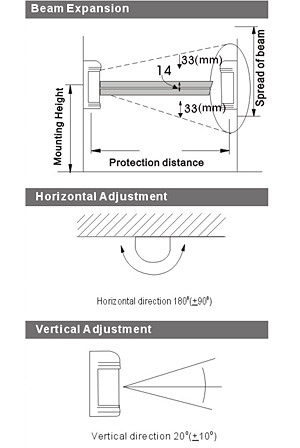

Alignment angle |
±10°vertical, ±90°horizontal |
|
Mounting |
Wall or pole |
|
Weight |
650g(Both transmitter and receiver) |
|
Appearance |
PC Resin(Black) |
|
IP Rating |
IP65 | |
|
|
