Home > Products > Burglar Alarm > Outdoor Siren > IM-301

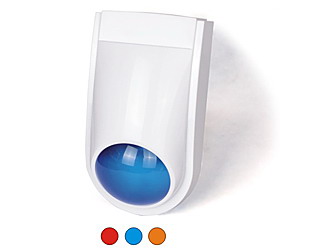

IM-301
·ABS Housing with UV resistance
·Internal/External Tamper trigger selectable
·SAB function available
·Twin or single sounders are selectable
·4 kinds of sounder time selection
·Piercing siren sound with high-visibility xenon strobe flashes
·Separated strobes providing both negative and positive inputs
·Red and green LED indicate easy status confirmation
·Lens: Blue, red, amber colors selectable
 Specifications



Model

IM-301

IM-301B

Material

ABS Housing with UV resistance

Operating voltage

10-15V DC

Current consumption standby

20mA at 12V DC

Backup battery

Without Battery

7.2V 500mA rechargeable

Siren current

220mA at 12V DC

Flash current

180mA at 12V DC

Siren output

115dB for single sounder, 120dB for twin sounders

Flash rate

once per 1 sec

Timers

5sec(test),3 min,20min,continuous

Operating temperature

-25 to +70

IP Rating

NA

Dimensions

210x130x78mm

Weight

0.6Kg

0.8Kg
