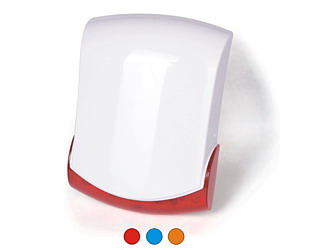

Home > Products > Burglar Alarm > Outdoor Siren > IM-302

·High resistant PC housing, UV prevention
·Internal/External Tamper trigger selectable
·Internal 7.2V rechargeable battery backup
·SAB function available
·Twin or single sounders selectable.
·4 kinds of sounder timer selectable.
·Piercing siren sound with high-visibility xenon strobe flashes.
·Separated strobes providing both negative and positive inputs
·Red and green LED indicate easy status confirmation
·Lens: Blue, red, amber colors selectable





PC Housing with UV resistance

Operating voltage

10-15V DC

Current consumption standby

20mA at 12V DC

Backup battery

7.2V 500mA rechargeable

Siren current

220mA at 12V DC

Flash current

180mA at 12V DC

Siren output

115dB for single sounder, 120dB for twin sounders

Flash rate

once per 1 sec


5sec(test),3 min,20min,continuous

Operating temperature

-25 to +70

IP Rating
