Home > Products > Burglar Alarm > Outdoor Siren > IM-304

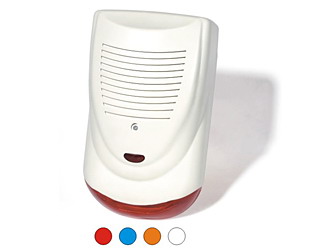

IM-304
·Highly resistant ABS housing, UV prevention
·Inside metal cover for double protection
·Magnetic dynamic sounders with 120DB at 1M
·Positive/negative siren trigger
·Positive/negative flash trigger
·Battery Backup
·Len colors in red, blue, orange, white
·2 Way tamper switch protection
 Specifications



Model

IM-304

Sound Pressure

120dB

Sound Tone

Yelp

Fundamental Frequency

1850Hz

Siren Tone

500-3000Hz

Flash Light

Lamp 12VDC/5W

Power supply Voltage

13.8-14.2VDC

Charge Current Limit

250mA

Current Consumption (Speaker & Strobe)

Standby:3mA, Alarm: 1000mA@13.5V

Maximum Power

50W(Peak)

Trigger Level

Trigger Low=Max. 1VDC   Trigger High=Min.9VDC

Siren Alarm Period

F.T-Follow Trigger TMR-3min

Tamper Switch

NC.28 VDC Maximum Current 0.1A, Open when cover is removed

Backup Battery

Rechargeable Lead Acid Battery,12V up to 1.3Ah

Low Battery Level

8VDC +/-0.3VDC

Material

External Box: ABS(3mm thick), Internal Cover: Metal(0.8mm thick)

Case Protection Level

PC with UV Protection

Operating Temperature Range

-30 to +60

IP Rating

NA

Dimensions

280X170X97mm

Weight(Without Battery)

1.2kg
