Home > Products > Burglar Alarm > Magnetic Switches > IM-134

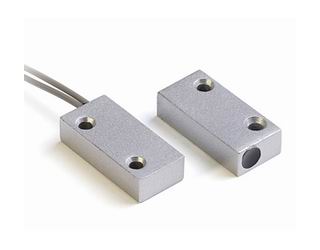

IM-134
·Metal magnetic contacts
·Switch & magnet concealed in polished alloy-zinc die-cast housing
·12 inch (30cm) side leads with AWG #22
·Screws included
·Reed : OKI®
·Magnet: NdFeB
·Ideal for commercial application or industrial use
 Specifications

• Loop Type : closed
• Reed Form :  NO
• Operating Gap Inch(mm):  1(25±5)
• Max Contact Resistance(Ohm):  0.2
• Max Rating Current (mA) :    500
• Max Switching Voltage (VDC):  100
