Home > Products > Burglar Alarm > Magnetic Switches > IM-126

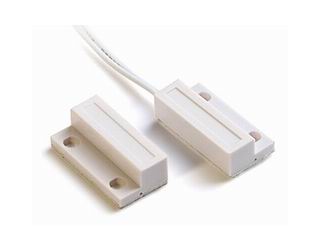

IM-126
·Mini stick-on contact with flange
·Self-adhesive and screw mount
·16 inch (40cm) side leads with AWG #22
·Magnet : NdFeB
·Color : white, brown, grey
 Specifications

• Loop Type : closed
• Reed Form :  NO
• Operating Gap Inch(mm): 3/4(20±5)
• Max Contact Resistance(Ohm):  0.2
• Max Rating Current (mA) :    500
• Max Switching Voltage (VDC):  100
