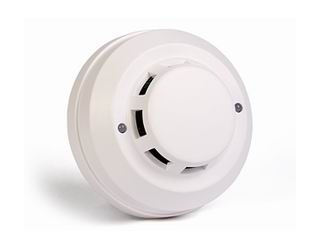

SD-98-2 |
 |
* Dual LEDs for 360-degree visibility
* Stainless steel inner housing for high ANTI-RFI
* Designed with CE standards
* Two or four wire models optional
* Sleek, low-profile housing design
* Low power consumption, high precision and stability
* Durable Sensor Head; Excellent smoke access
* Power-off reset for 2 wire connection
* Auto-reset or power-off reset optional for 4 wire connection
* Easy Installation and maintenance
* 24V mode available
|
| Specifications |
|
Model |
SD98-2 wire |
SD98-4 wire |
|
Operating Voltage |
DC 10~35V |
DC12V |
|
Standby Current |
≦100uA |
≦15mA |
|
Alarm Current |
70mA(at DC 24V) |
≦15mA |
|
Detecting Area |
80 square meter(with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m) |
|
Alarm Output |
Conventional Output and LED flash |
Relay output (N.O/N.C) and LED flash |
|
Installation Method |
Ceiling Mounted |
|
Operating Temperature |
-10°C ~ +55°C |
|
Operating Humidity |
≦95%RH |
|
Dimensions |
104mm(Dia)x51mm(H) | |
|
