Home > Products > Burglar Alarm > PIR Detector > PR-604

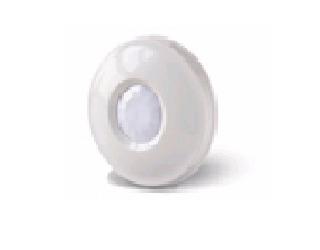

PR-604
* Ceiling Mounted
* Anti- burn ABS Shield
* Auto temperature compensation, reducing false alarm
* Adopted SMT, high EMI/RFI immunity
* Pulse Count optional for different environment installation
* Dynamic Valve Adjustment Technology for Anti-interferences
* Alarm output NC/NO optional for different controllers
 Specifications



* Input Voltage: DC 916V
* Operating Current: 18mA (DC 12V )
* Operating Temperature:-10℃~+50
* Installation Method: Ceiling mounted
* Installation Height: 2.5m ~6m is recommended
* Detecting distance: 6 diameter (at 3.6m installation height)
* Detecting Angle: 360°
* Alarm Output: NO. NC optional
* Anti Tamper Switch: Normal Close
