Home > Products > Burglar Alarm > Vibration Sensor & Analyzer > VD-972

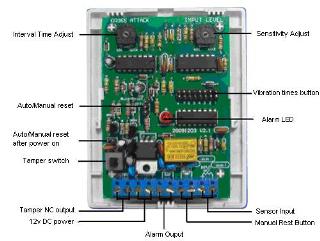

VD-972
* Vibration Analyzer
* Sensitivity adjustable
* Time interval adjustable
* EOL monitoring of balance test circuit
* Automatic reset/manual reset/ power-on reset adjustable
* Trouble alarm function
* Anti-tamper alarm function
* Anti-thunder, anti-surge design
 Specifications



VD972(Analyzer)
Operating voltage
DC12V（voltage range：DC10-16V）
Operating current
45mA
Operating temperature
-10°C~50°C（14°F~122°F）
Sensor type and connection number
Vibration switch sensor,maximun 10 sensor in serials
Vibration sensitivity
0.1~60ms input
Time interval adjust
80~200ms
Alarm output
NC
Anti-temper output
NC
Surge test data
Test voltage 1 KV
EFT/B test data
Test voltage 2 KV
Dimension
135*70*50mm
