Home > Products > Burglar Alarm > Outdoor Siren > IM-305

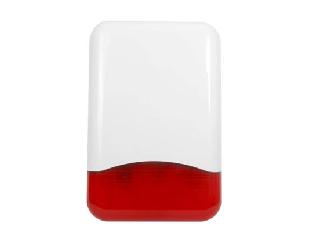

IM-305
*Compatible with all control panels
*Acoustic signal - piezo buzzer
*Optical signal - xenon strobe tube
*4 different sounds available
*2 controlling inputs
*Highly resistant poly carbonate housing
*Tamper protection
  - against opening
  - against pull-off
  - against foam injection
*Galvanized steel inner cover
*Impregnated electronic circuits
*Backup power supply 6v/1.2Ah
 Specifications



*Average current consumption:
  - acoustic signaling: up to 180mA
  - visual signaling: 120mA
  - signaling+charging: up to 300mA
*Backup battery: 6v/1.2Ah
*Protection: fuse WTAT 3.15A
*Sound intensity level: max 110db
*Operating temperature: -35 degree C to +60 degree C
*Dimensions: 300x200x78mm
*Weight without battery: 0.9kg
