Home > Products > Burglar Alarm > Water Flood Detector > FS-10

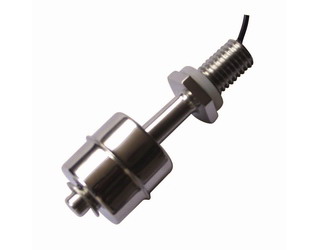

FS-10
1.Ideal for water or liquid level with PH-/PH+
2.Material of Body: SUS304
3.Material of float: SUS316
4.Output: Normal open with 10W
5.Material of screw net & E-ring: SUS304
6.Proportion of float: 0.7kg/cm3
7.Max pressure: 10kg/cm2
8.Leads: 1430UL22AWG430mm length
 Specifications

Description
Parameters
Contact Position
Upper
Switching Power
10W
Switching Voltage (Max)
DC100V
Breakdown Voltage (Min)
200V
Switching Current (Max)
0.5A
Carrying Current (Max)
DC1.0A
Initial Resistance (Max)
0.2ohm
Insulation Resistance (Min)
ohm
Operating Temperature
-40 – 150 degree C
