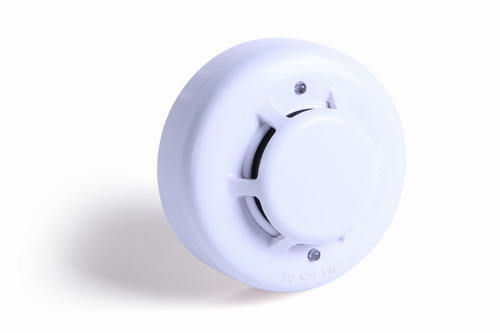

Home > Products > Burglar Alarm > Smoke Detector > SD-100-4

* Dual LEDs for 360-degree visibility,No polarized, 4-wire
* Stainless stell inner housing for high ANTI-RFI
* Sleek,low-profile housing design
* Low power consumption,high precision and stability
* Durable sensor head,excellent smoke access
* Red led flashing in standby mode. Red led on in alarm mode
* Auto-reset/Power-off reset option
* Easy installation and maintenance
* Network by relay,N.O/N.C optional on board
* Input voltage: 10-30VDC
* With detector base
SD-100-4 wire
Operating Voltage
Standby Current
Alarm Current
Detecting Area
80 square meter(with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m)
Alarm Output
Relay output (N.O/N.C) and LED flash
Installation Method
Ceiling Mounted
Operating Temperature
-10°C ~ +55°C
Operating Humidity
