Home > Products > Burglar Alarm > Beam Detector > ABO 20

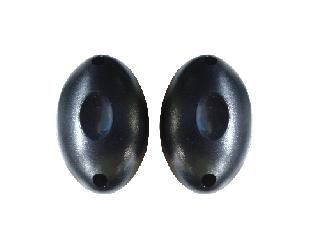

ABO 20
* Single beam Photoelectric Detector
* Technology:Infrared
* Receiver Range: <= 15m.  (Range can be reduced to 30% in bad   weather like rain, dust…
* Infra-RED Frequency: 1.92 KHz
* Power Supply: 12 VDC
* Wave Length: 940 nm
* Input: RX 15mA, TX 30mA
* Operating Temperature: -20 ℃ – 70 ℃
* Alarm Output: N/C or N/O option on board
* Relay Output: 1A max 36v
* Dimension: 49.2 x 76 x 21.6 mm
